Nine Major Factors Affecting Scratches in Grinding with Grinding Wheels

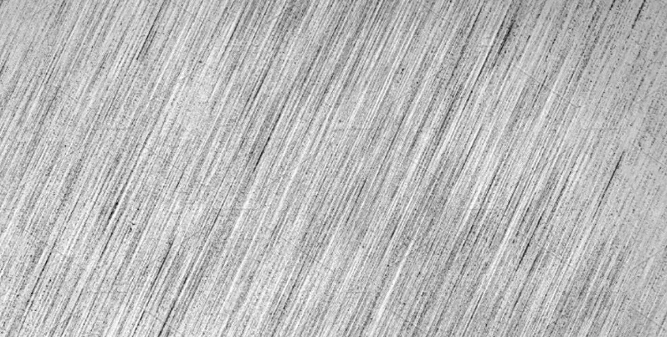

Scratches during the grinding process with grinding wheels have always troubled many users of grinding wheels. Scratches not only affect the surface quality of the workpiece but may also reduce its service life and performance. Faced with this problem, many processors feel at a loss, not knowing where to start to solve it. This article will delve into the causes of scratches in grinding with grinding wheels and provide you with a set of practical solutions to help you solve this problem and improve the quality of processing. There are several potential causes of grinding scratches, and the following are the main factors:

Improper Selection of Grinding Wheel: The type of abrasive used in the grinding wheel is one of the key factors affecting its processing performance and surface quality. If the type of abrasive selected does not match the material of the workpiece or is not suitable for specific processing conditions, it may lead to the generation of scratches.

Brittleness of the Abrasive: When the abrasive is brittle, the grains are prone to breaking during the grinding process, forming irregular particles. These particles may produce additional cutting forces when in contact with the workpiece, thereby leaving scratches or scratches on the surface of the workpiece. Such scratches not only affect the appearance quality of the workpiece but may also damage its service performance and life.

Low or Uneven Hardness of the Grinding Wheel: A grinding wheel with low hardness may cause the grains to fall off during grinding, leaving scratches on the surface of the workpiece.

Uneven hardness of the grinding wheel can also lead to grain loss, increasing the risk of scratches.

Improper Selection of Grit Size: The selection of grit size directly affects the cutting force and the working condition of the grinding wheel during the grinding process. When the grit size is too large, the grains may generate excessive cutting force, leading to deeper scratches on the workpiece surface; whereas when the grit size is too small, although it can improve surface finish, it may increase the risk of clogging the grinding wheel, affecting the grinding effect, and indirectly increasing the possibility of workpiece scratches. Therefore, correctly selecting the grit size of the grinding wheel is crucial to ensure the quality of grinding processing and avoid workpiece scratches.

Grinding Wheel Clamping Issues: If the grinding wheel is not clamped tightly, or if the main shaft is worn, the grinding wheel may vibrate or jump during the grinding process, thereby increasing the risk of scratches.

Irrational Setting of Grinding Parameters: If the parameters such as cutting speed, feed rate, and grinding depth during the grinding process are set improperly, they may increase the friction between the grinding wheel and the workpiece, leading to scratches.

Insufficient or Unclean Cooling Fluid: The reason for scratches due to insufficient cooling fluid is mainly that during the grinding process, the cooling fluid fails to fully remove the heat generated, causing the temperature of the workpiece and grinding wheel to rise. At high temperatures, the hardness of the workpiece material decreases, making it more susceptible to scratches. At the same time, overheating may also cause deformation or damage to the grinding wheel, making the grain distribution uneven or protruding,further increasing the risk of scratches. Therefore, the adequate supply of cooling fluid is crucial to avoid scratches.

When the cooling fluid is unclean, it may contain impurities, particles, or sediments. These contaminants may be brought between the workpiece and the grinding wheel during the grinding process, forming scratches or scratches on the workpiece surface. These impurities may be caused by aging, contamination, or improper maintenance of the cooling fluid. They can disrupt the stability and smoothness of the grinding process, leading to surface damage on the workpiece. Therefore, keeping the cooling fluid clean is essential to avoid workpiece scratches.

Poor Surface Condition of the Workpiece: When the surface condition of the workpiece is poor, such as the presence of oil stains, oxide layers, rust, or other contaminants, these impurities will come into contact with the grinding wheel during the grinding process, increasing the coefficient of friction between the grinding wheel and the workpiece, thereby increasing the risk of scratches. In addition, an uneven surface can also cause uneven cutting forces during the grinding process, resulting in scratches on the workpiece. Therefore, keeping the workpiece surface clean and smooth is key to avoiding scratch problems.

Excessive Surface Roughness from the Previous Process: If the grinding amount in the previous process is small, it may leave rough grinding marks. These marks may become a source of scratches in the next process, increasing the risk of scratches.

Scratches are a common quality issue in the grinding process with grinding wheels, but they can be effectively reduced by using high-quality grinding wheels, optimizing grinding parameters, pre-treating the workpiece surface, and strengthening cooling and lubrication. In actual operations, targeted solutions should be formulated according to specific situations to continuously improve the quality of grinding. At the same time, strengthen the monitoring and inspection of the grinding process to promptly detect and handle quality issues such as scratches, ensuring the processing quality and performance of the workpiece.
